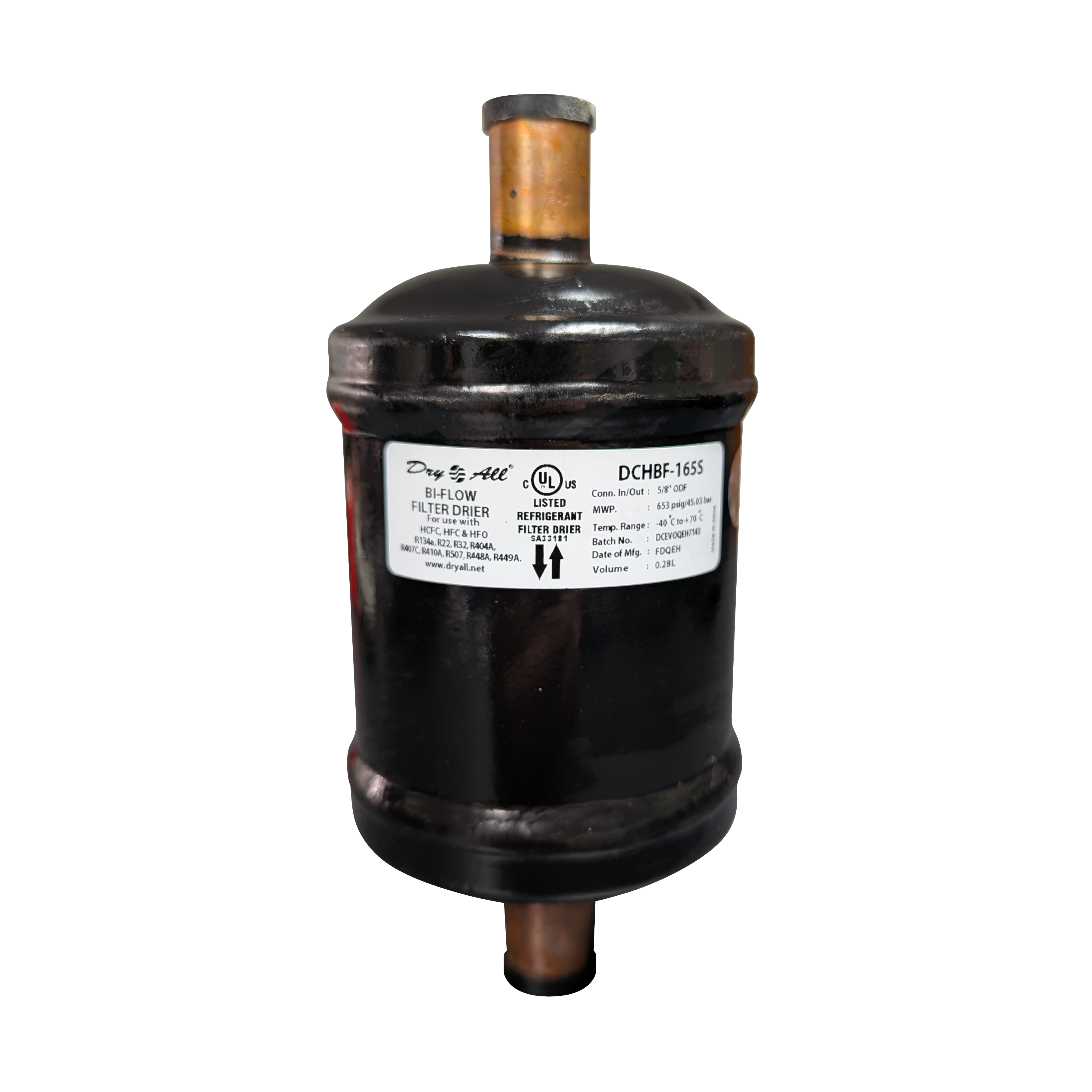

DCHBF-165S ODF 5/8″ Bi-Flow Filter Drier

Key Features & Benefits

• Bi-Directional Flow: Features built-in check valves that allow for efficient, unrestricted flow in both directions, ensuring the refrigerant is filtered properly regardless of whether the system is heating or cooling.
• High-Capacity Solid Core: Constructed with a 16 cubic inch solid core, composed of 80% molecular sieve (for moisture) and 20% activated alumina (for acid and contaminant removal).
• Superior Contaminant Removal: Effectively removes moisture, acid, and solid contaminants, providing high-flow capability with minimal pressure drop.
• High Pressure Rating: Designed for high-pressure refrigerants, with a maximum working pressure (MWP) of 45 bar / 653 psig.
• Wide Compatibility: Suitable for use with HCFC, HFC, HFO, and HC refrigerants (e.g., R32, R410A, R404A, R22, R134a) and mineral or POE lubricants.
• Durable Construction: Features 5/8″ ODF (solder) connections, often made of nickel-plated steel for enhanced corrosion resistance, with a black powder-coated shell designed to withstand over 500-1000 hours of salt spray tests.
• Flexible Installation: Can be mounted in any orientation (horizontal or vertical).
• Temperature Range: Suitable for operating temperatures ranging from -40°C to +70°C (-40°F to 160°F).
• Certifications: UL and/or CRN listed, ensuring reliability and safety.
