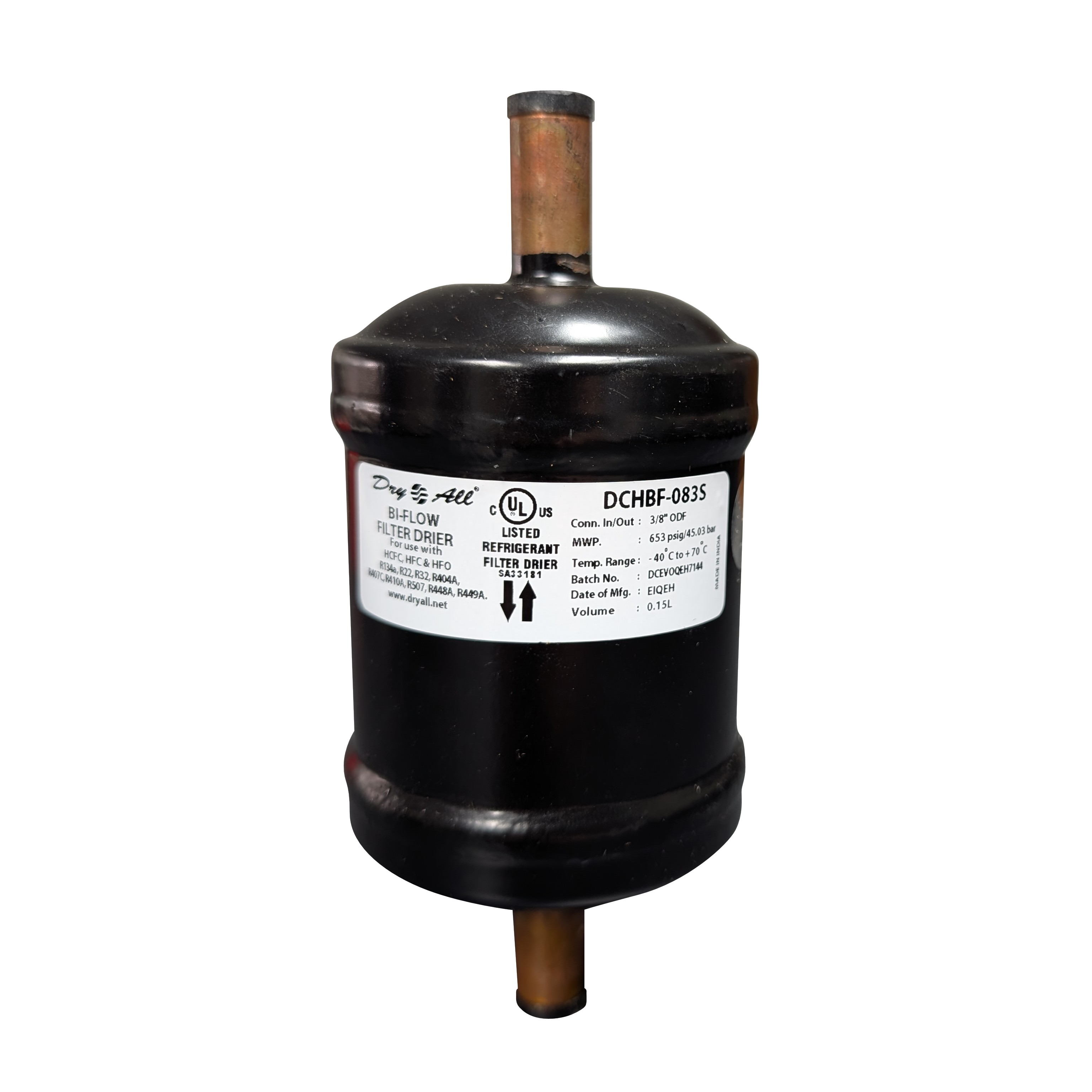

DCHBF-083S ODF 3/8″ Bi-Flow Filter Drier

Key benefits

• Bidirectional Flow Design: Internal check valves allow the drier to filter refrigerant efficiently in both heating and cooling modes, eliminating the need for external check valves.
• High-Capacity Moisture/Acid Removal: Typically constructed with a blend of 80% molecular sieve and 20% activated alumina, it provides superior moisture adsorption and acid removal.
• High-Pressure Compatibility: Designed to work with modern, high-pressure refrigerants, including R-410A and R-32, with a maximum working pressure of 45 bar (approx. 653-680 psig).
• Durable Construction: Features a solid, molded core that resists attrition and a robust, corrosion-resistant steel shell, often with a powder-coat finish tested to 1,000 hours of salt spray.
• Minimal Pressure Drop: Utilizes advanced design (such as honeycomb plates) to minimize pressure drop across the filter, ensuring efficient system performance.
• Filtration Efficiency: Offers superior filtration down to 20-25 microns.
• Versatile Installation: Can be mounted in either vertical or horizontal positions.

Technical Specifications:

• Connection Size: 3/8″ ODF (Solder)
• Capacity: 8 Cubic Inches
• Compatible Refrigerants: CFC, HCFC, HFO, HFC, and HC refrigerants
• Connection Type: Solder (ODF)
