Description

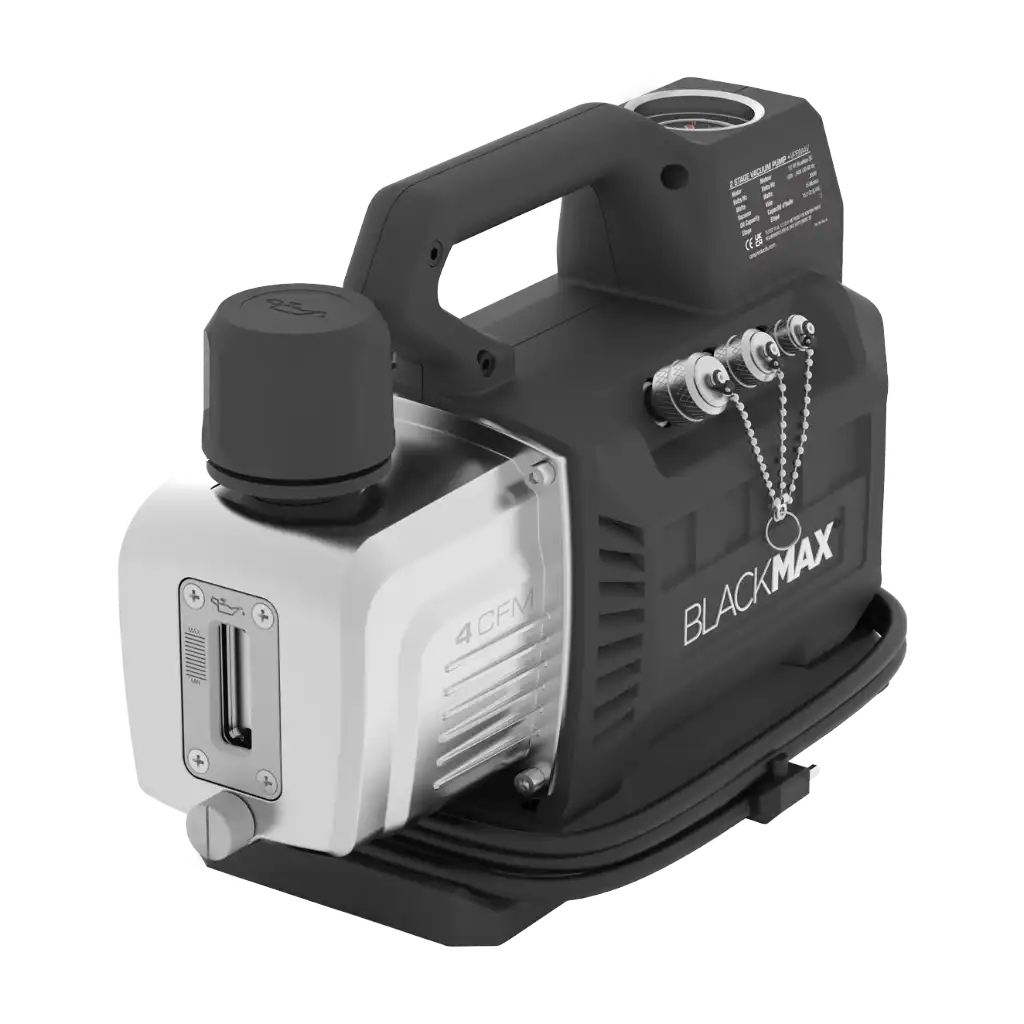

The BlackMax VPBM4V vacuum pump is a 4 CFM, 2-stage unit with a versatile spark-proof & dual voltage 0.5HP motor. The unit boasts the same high quality, high value features engineered into all of our Blackmax vacuum pumps. Now independently approved for use with the A1, A2, A2L, and A3 refrigerants, making it a future-proof solution for refrigeration and air conditioning systems. This broad approval ensures compatibility with a wide range of refrigerant types, including lower-toxicity and lower-flammability options, aligning with evolving safety and environmental standards. By supporting these refrigerants, the vacuum pump is adaptable to current and future refrigerant regulations, enabling technicians and engineers to confidently utilize it across various applications without the need for frequent equipment changes. This versatility not only enhances operational flexibility but also secures the investment against upcoming refrigerant policy shifts, making it a sustainable and reliable choice for the long term.
Maximum Free Air Displacement: 4 CFM
Stage: 2
Ultimate Vacuum: 15 Microns
Refrigerant Class: Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine)
Voltage: Universal Voltage: 100V min- 240V max, 50/60Hz
Maximum RPM: 3200
Motor Size (HP): 1/2 HP
Watts: 300
Ignition Proof On/Off Switch: Flashing Green: Standby; Solid Green: Pump Is Running
Power Cord: Locking 90° IEC Type, 10 Ft (3m) Length
Vacuum Pump Oil Capacity (Max): 15.0 Oz (0.44 L)
Exhaust/Oil Fill Cap: Mist Free
Analog Vacuum Gauge: Units: kPa, InHg (Accuracy +/-2%)
Gas Ballast Valve: Drys Out The 2nd Stage. Plated Brass
Solenoid Valve: Normally Closed. Open When Vacuum Pump Is Energized
Operating Temperature Range: 5°F to 130°F (-15°C to 55°C)
Thermal Overload Protection: Yes
Pump Weight (W/o Pkg): 18.2 Lbs (8.25 Kg)
Actual Size (mm): 10.0″ H x 5.8″ W x 13.8″ L (254 x 147 x 352 mm)
